Four Low Budget Kerala Style Three Bedroom House Plans Under 750 Sq.ft.

Four low budget Kerala style single floor house plan under 750 sq.ft. with full plan and elevation.


786 Sq.ft. 3 Bedroom House Plan and Elevation

Four simple and cost-effective 3 bedroom single floor house plans under 750 sq.ft (69.70 sq. mt.) These  4 house plans are suitable for those with very limited plot areas therefore, these are the house plans designed for such people. We can build these house designs within 4 cents of the plot area. These four house plans are simple, cost-effective, and well-designed for easy and fast construction in a short time.

Plan 1. Three Bedroom 786 Sq.ft. House Plan in 4.00 Cents

786 Sq.ft. 3 Bedroom House Plan and Elevation

786 Sq.ft. 3 Bedroom House Plan and Elevation

Main Features of this House Plan

  • 3 bedrooms with one common toilet
  • 160 cm wide entrance sit out
  • A spacious dining area
  • Medium size drawing hall
  • Medium size kitchen for daily cooking
  • This is an east-facing house plan as per vastu

Room Size and Specifications

  • Sit out                 -       51 sq.ft.
  • Dining                 -    130 sq.ft.
  • Drawing              -       87 sq.ft.
  • Bedroom 1          -       96 sq.ft.
  • Bedroom 2          -       96 sq.ft.
  • Bedroom 3          -       87 sq.ft.
  • Toilet 1               -       30 sq.ft.
  • Kitchen               -       96 sq.ft.
All room sizes are approximate

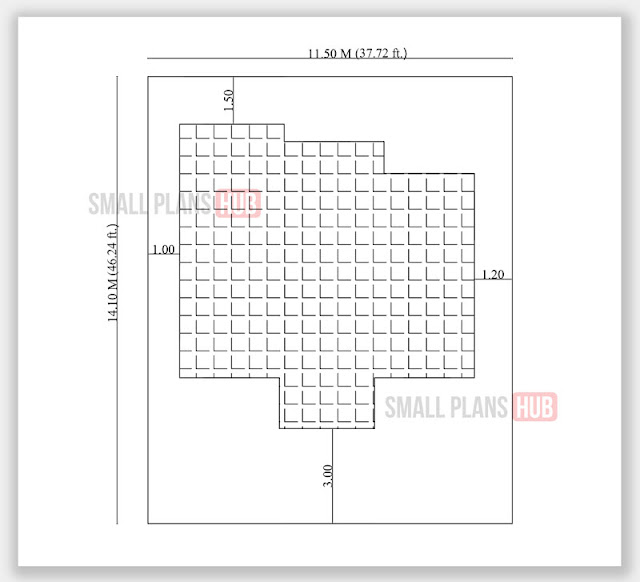

786 Sq.ft. 3 Bedroom House Plan and Site Plan

Area details

The total length of the plan (front to back)   -         9.30 m. (30.50 ft.)
Maximum width of the plan                          -         9.60 m. (31.48 ft.)
Total Plinth Area of the plan                      -   73.04 sq.m. (786 sq.ft.)

Minimum Plot size requirements

Minimum Length required for the plot             -   11.50 m. (37.72 ft.)
Minimum Width required for the plot Width   -   14.10 m. (46.24 ft.)
Land area required for this Plan                   -  1.62 Are or 193.79 Sq.yards (4.00 Cents)

Plan 2. Three Bedroom 743 Sq.ft. House Plan in 4.42 Cents

743 Sq. ft. 3 Bedroom Single Floor House Plan and Elevation
743 Sq. ft. 3 Bedroom Single Floor House Plan and Elevation

Main Features of this House Plan

  • Three bedrooms with one common toilet
  • Entrance sit out
  • A long hall for living and dining section
  • Medium size kitchen for daily cooking
  • This is a north-facing house plan

Room Size and Specifications

  • Sit out                 -       40 sq.ft.
  • Dining                 -     185 sq.ft.
  • Bedroom 1          -       90 sq.ft.
  • Bedroom 2          -       92 sq.ft.
  • Bedroom 3          -       87 sq.ft.
  • Toilet 1               -       35 sq.ft.
  • Kitchen               -       87 sq.ft.
All room sizes are approximate

743 Sq. ft. 3 Bedroom Single Floor House Plan and Site Plan

Area details

The total length of the plan (front to back)   -        9.50 m. (31.16 ft.)
Maximum width of the plan                          -      10.79 m. (35.39 ft.)
Total Plinth Area of the plan                      -   69.05 sq.m. (743 sq.ft.)

Minimum Plot size requirements

Minimum Length required for the plot             -  11.74 m. (38.50 ft.)
Minimum Width required for the plot Width   -   15.28 m. (50.11 ft.)
Land area required for this Plan                   -  1.79 Are or 214.35 Sq.yards (4.42 Cents)

Plan 3. Three Bedroom 742 Sq.ft. House Plan in 3.53 Cents

742 Sq.ft. 3 Bedroom Single Floor Plan and Elevation

742 Sq.ft. 3 Bedroom Single Floor Plan and Elevation

Main Features of this House Plan

  • One bedroom with attached toilet
  • 2 Bedrooms with one common toilet
  • Sitout on the left side
  • A long hall for living and dining section
  • Medium size kitchen for daily cooking
  • There is an extra cooking space that we can use as a pantry
  • This is a south-facing house plan

Room Size and Specifications

  • Sit out                 -       45 sq.ft.
  • Dining/ living     -     174 sq.ft.
  • Bedroom 1          -       87 sq.ft.
  • Bedroom 2          -       82 sq.ft.
  • Bedroom 3          -       72 sq.ft.
  • Toilet 1               -        30 sq.ft.
  • Toilet 2               -        25 sq.ft.
  • Kitchen               -       52 sq.ft.
  • Pantry                 -       65 sq.ft.
All room sizes are approximate

742 Sq.ft. 3 Bedroom Single Floor Plan and Site Plan

Area details

The total length of the plan (front to back)   -        8.70 m. (28.53 ft.)
Maximum width of the plan                          -        8.65 m. (28.37 ft.)
Total Plinth Area of the plan                      -   68.95 sq.m. (742 sq.ft.)

Minimum Plot size requirements

Minimum Length required for the plot             -  10.90 m. (35.75 ft.)
Minimum Width required for the plot Width   -   13.15 m. (43.13 ft.)
Land area required for this Plan                   -  1.43 Are or 171.32 Sq.yards (3.53 Cents)

Plan 4. Three Bedroom 740 Sq.ft. House Plan in 3.50 Cents

740 Sq.ft. 3 Bedroom Single Floor House Plan and Elevation

740 Sq.ft. 3 Bedroom Single Floor House Plan and Elevation

Main Features of this House Plan

  • Three bedrooms with one common toilet
  • There is a center-positioned sitout
  • A Spacious and  long hall for living and dining section
  • Medium size kitchen for daily cooking
  • This is a north-facing house plan

Room Size and Specifications

  • Sit out                 -       48 sq.ft.
  • Dining/ living     -     198 sq.ft.
  • Bedroom 1          -       90 sq.ft.
  • Bedroom 2          -       90 sq.ft.
  • Bedroom 3          -       90 sq.ft.
  • Toilet 1               -        30 sq.ft.
  • Kitchen               -        90 sq.ft.
All room sizes are approximate

740 Sq.ft. 3 Bedroom Single Floor House Plan and Site Plan

Area details

The total length of the plan (front to back)   -        9.20 m. (30.17 ft.)
Maximum width of the plan                          -        7.95 m. (26.07 ft.)
Total Plinth Area of the plan                      -   68.77 sq.m. (740 sq.ft.)

Minimum Plot size requirements

Minimum Length required for the plot             -   11.40 m. (37.39 ft.)
Minimum Width required for the plot Width   -   12.45 m. (40.83 ft.)
Land area required for this Plan                   -  1.42 Are or 169.62 Sq.yards (3.50 Cents)
  • [message]
    • ##check## Note:
      • The width of the plot is based on 1.00 m. (3.28 ft.) on the left side and  1.20 m. (4.00 ft.) on the right side of the building. The length of the plot is based on 1.50 m. (5.00 ft.) at the rear side and  3.00 m. (10.00 ft.) at the front side of the building.
